CLD OEM Sensors

Our technology - Your brand

We don’t have to put our name on it!

Instead we offer OEM solutions with our top-notch gas analysis technology for your product. We are happy to compliment your product solution with our know-how to create the best value for your customer. Wether we are extending your product functions or making it safer with e.g. continuous emission monitoring. We look forward to working with you!

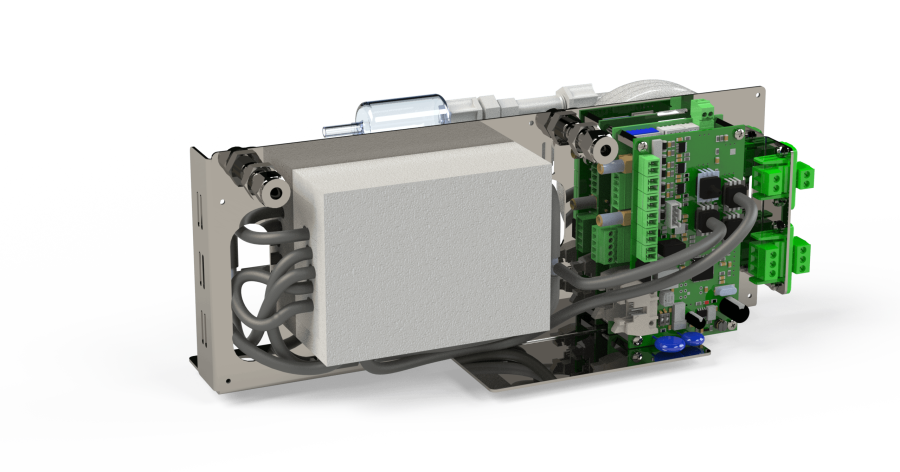

CLDmini OEM Sensor

The OEM sensors CLDmini BASIC and CLDmini PRO offer precise measurement results in a very small space.
They combine the advantages of the chemiluminescence method with a compact size.
The CLD-OEM sensors can also be combined with our other sensors and accessories, e.g. pressure measurement or display options via touch screen.

Option: NOX-converter is available.

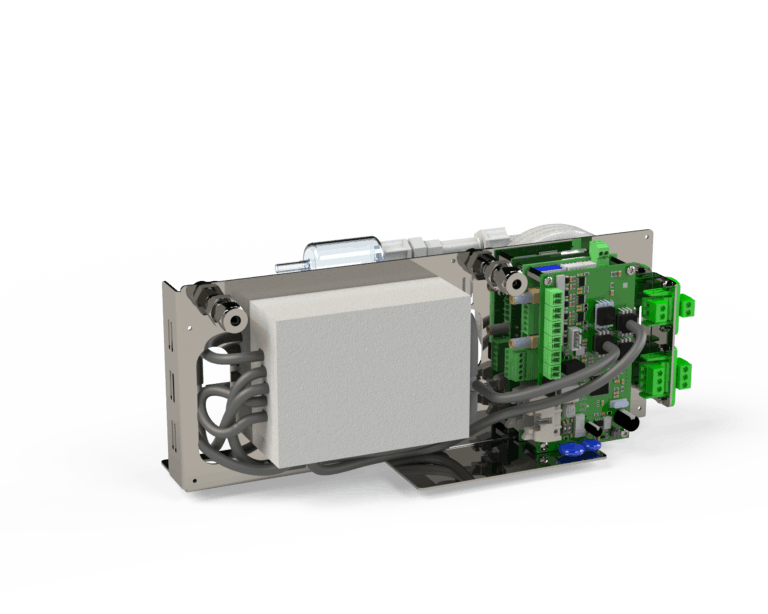

CLDmini BASIC

The BASIC sensor module contains the reaction chamber, a drying hose, the ozone generation and the associated evaluation electronics.
The temperature-stabilized reaction chamber allows reproducible measurements at low concentrations.

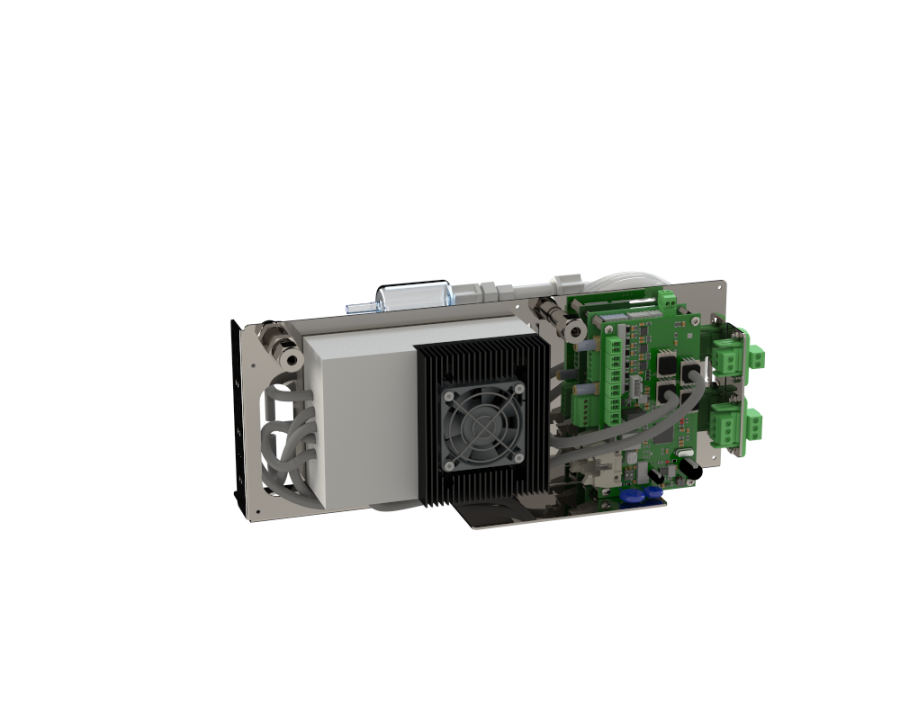

CLDmini PRO

The CLDmini PRO sensor has the same basic design as the CLDmini BASIC.
In addition to the temperature stabilized reaction chamber, it contains a cooling system for the PMT.
This allows a better signal-to-noise ratio and thus a significantly lower detection limit to be achieved.


Reduction of NO2 molecules to NO when the sample gas is passed through the cartridge or the converter material contained therein.
Achieves a converter efficiency of up to 98 %.

Technical Data

Technical dataCLDmini
GasNO
Ambient temperature15-35 °C
Input pressure800 – 1.100 mbar
CommunicationCAN
Dimensions (L x W x H)318 x 99 x 122 mm
Weightapprox. 1,2 kg
Power supply24 V DC

Specifications

SpecificationsCLDmini BASICCLDmini PRO
GasesNO/NOX
Measurement range (FS)0 - 1.000 ppm0 - 100 ppm
Limit of detection (LOD)1 @t10-t90 ≤ 5 s< 0,5 ppm (2σ) 0,05 ppm (3σ)
Linearity± 1 % FS
Zero drift< LOD in 8 h
Span drift< 1 % FS in 8 h
1 depending on filter settings and flow-rate
