LASmini CH4, CO, CO2 & H2O
For monitoring: CH4, CO, CO2 & H2O

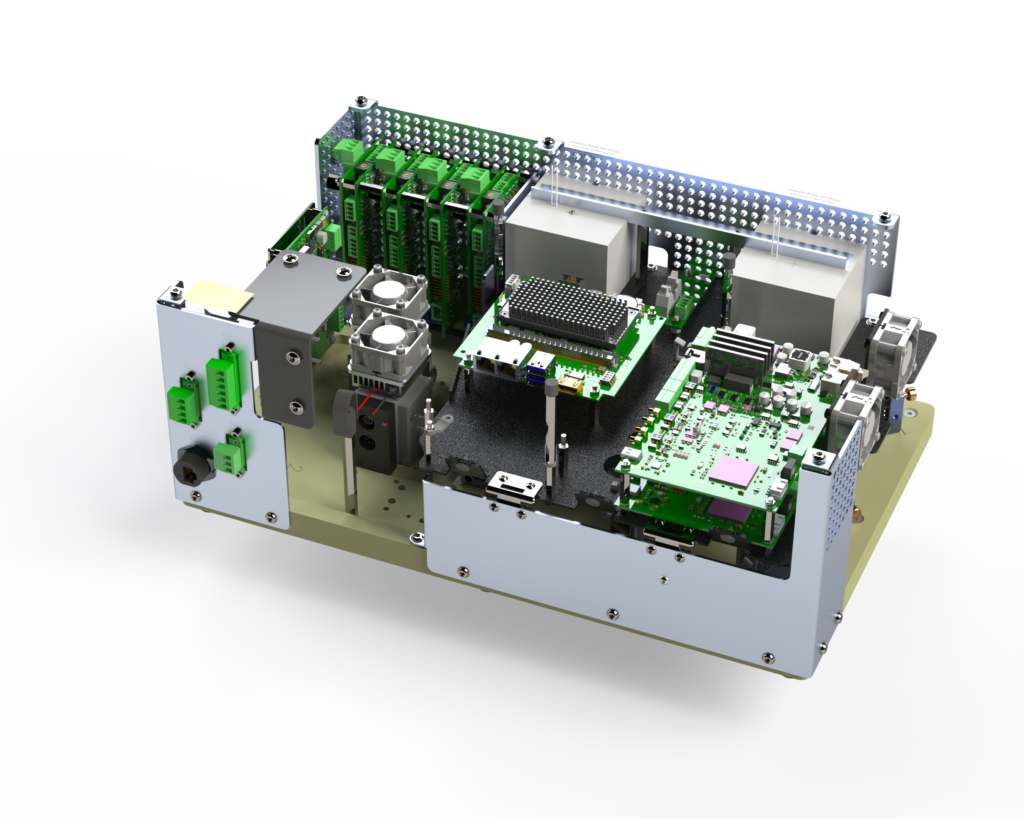

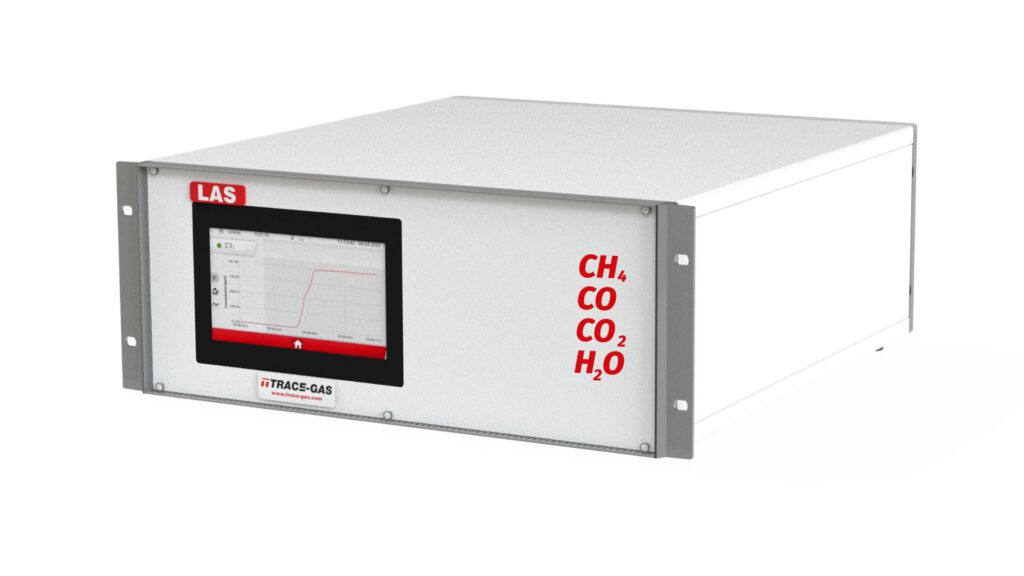

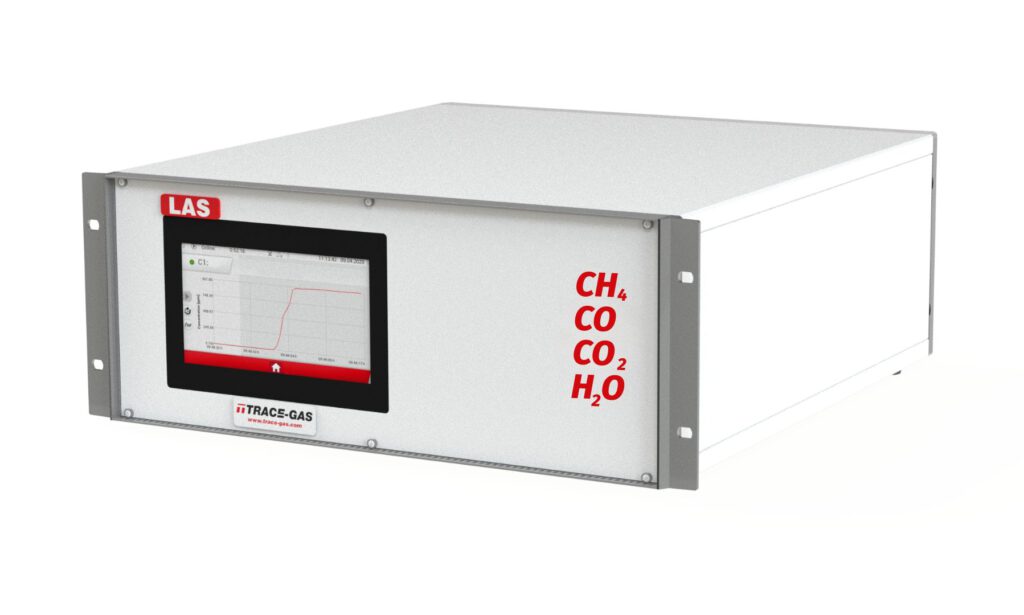

LASmini CH4, CO, CO2 & H2O Analyzer
The TRACE-GAS LASmini CH4, CO, CO2 & H2O-Analyzer combines reliability, precision, and ease of use in a compact device. Designed for low-calibration, direct hot-wet measurement of methane (CH4), carbon monoxide (CO), carbon dioxide (CO2), and water (H2O) using laser absorption spectroscopy (TDLAS) without the need for a sample gas cooler or complex gas conditioning.
- Measurement ranges for the gases:
– CH4 0-20.000 ppm
– CO 0-5%
– CO2 0-20%
– H2O 0-20% - Hot-wet measurement without a cooler – direct measurement in hot, humid exhaust gas at cell temperatures up to 190 °C
- Four gases simultaneously – all components in a single measurement cell, with no time delay
- No cross-sensitivities – high selectivity through measurement of individual absorption lines
- No condensation, no adsorption – thanks to a heated measurement cell and vacuum operation
- Wide dynamic range – up to 5 orders of magnitude from the detection limit to the end of the measurement range
- Easy integration – Modbus TCP/IP, 24 V DC power supply, compact design
- Virtually maintenance-free
- No consumables required
- Process monitoring
- Research and development
| Technical data | LAS mini CH4 CO, CO2 & H2O |
|---|---|
| Ambient temperature | 10 – 35 °C (non-condensing) |
| Ambient humidity | < 80%, non-condensing |
| Cell temperature | up to 190 °C |
| Cell pressure | ~150 mbar (internal regulation with pump) |
| Gas pressure at inlet | 800 – 1100 mbar |
| Gas flow | < 2.0 l/min 1 |
| Communication | Modbus TCP/IP (RJ45) |
| Pump control | 0 – 5 V control output |
| Dimensions (L x W x H) | 450 x 320 x 160 mm |
| Weight | approx. 6 kg |
| Supply voltage | 24 V DC |
| 1 can be adjusted as needed | |
| Specifications | LASmini |
|---|---|
| Measuring range (FS) | CH4 0-20.000 ppm CO 0-5% CO2 0-20% H2O 0-20% |
| Limit of detection (LOD) | CH4≤ 0,1 ppm (3σ) CO ≤ 10 ppm (3σ) CO2≤ 0,1% (3σ) H2O ≤ 0,1% (3σ) |
| Zero drift1 | ≤ LOD in 24h |
| Sensitivity Drift 1 | < 1% FS in 24 h |
| Linearity | ≤ ± 1% FS |
| Ascent time t10-t90 | ≤ 30 s |
| 1 under constant ambient conditions | |
